#include "config.h"
#include "system.h"
#include "coretypes.h"
#include "tm.h"
#include "tree.h"
#include "rtl.h"
#include "hard-reg-set.h"
#include "basic-block.h"
#include "regs.h"
#include "flags.h"
#include "function.h"
#include "except.h"
#include "expr.h"
#include "diagnostic-core.h"
#include "timevar.h"
#include "sbitmap.h"

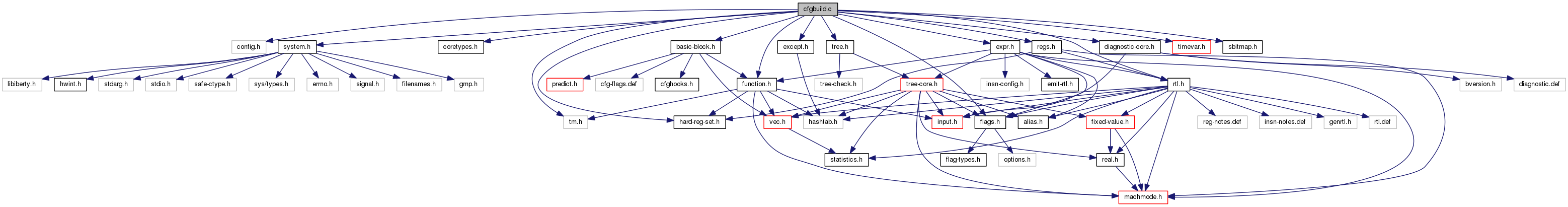

Include dependency graph for cfgbuild.c:

Macros
#define	STATE(BB) (enum state) ((size_t) (BB)->aux)
#define	SET_STATE(BB, STATE) ((BB)->aux = (void *) (size_t) (STATE))
#define	BLOCK_USED_BY_TABLEJUMP 32
#define	FULL_STATE(BB) ((size_t) (BB)->aux)

Enumerations
enum	state { BLOCK_NEW = 0, BLOCK_ORIGINAL, BLOCK_TO_SPLIT }

Functions
static void	make_edges (basic_block, basic_block, int)
static void	make_label_edge (sbitmap, basic_block, rtx, int)
static void	find_bb_boundaries (basic_block)
static void	compute_outgoing_frequencies (basic_block)
bool	inside_basic_block_p ()
bool	control_flow_insn_p ()
static void	make_label_edge ()
void	rtl_make_eh_edge ()
static void	make_edges ()
static void	mark_tablejump_edge ()
static void	purge_dead_tablejump_edges ()
static void	find_bb_boundaries ()
static void	compute_outgoing_frequencies ()
void	find_many_sub_basic_blocks ()

Macro Definition Documentation

#define BLOCK_USED_BY_TABLEJUMP 32

Used internally by purge_dead_tablejump_edges, ORed into state.

#define FULL_STATE ( BB ) ((size_t) (BB)->aux)

#define SET_STATE	(	BB,
		STATE
	)	((BB)->aux = (void *) (size_t) (STATE))

#define STATE ( BB ) (enum state) ((size_t) (BB)->aux)

Enumeration Type Documentation

enum state

States of basic block as seen by find_many_sub_basic_blocks.

Enumerator:

BLOCK_NEW	Basic blocks created via split_block belong to this state. make_edges will examine these basic blocks to see if we need to create edges going out of them.
BLOCK_ORIGINAL	Basic blocks that do not need examining belong to this state. These blocks will be left intact. In particular, make_edges will not create edges going out of these basic blocks.
BLOCK_TO_SPLIT	Basic blocks that may need splitting (due to a label appearing in the middle, etc) belong to this state. After splitting them, make_edges will create edges going out of them as needed.

Function Documentation

static void compute_outgoing_frequencies ( basic_block )

static

static void compute_outgoing_frequencies ( )

static

Assume that frequency of basic block B is known. Compute frequencies and probabilities of outgoing edges.

We rely on BBs with more than two successors to have sane probabilities and do not guess them here. For BBs terminated by switch statements expanded to jump-table jump, we have done the right thing during expansion. For EH edges, we still guess the probabilities here.

bool control_flow_insn_p ( )

Return true if INSN may cause control flow transfer, so it should be last in the basic block.

     Noreturn and sibling call instructions terminate the basic blocks
     (but only if they happen unconditionally).

     Call insn may return to the nonlocal goto handler.

     Treat trap instructions like noreturn calls (same provision).

     It is nonsense to reach this when looking for the
     end of basic block, but before dead code is eliminated
     this may happen.

static void find_bb_boundaries ( basic_block )

static

static void find_bb_boundaries ( )

static

Scan basic block BB for possible BB boundaries inside the block and create new basic blocks in the progress.

 Scan insn chain and try to find new basic block boundaries.

     In case we've previously seen an insn that effects a control
     flow transfer, split the block.

             Clean up the bb field for the insns between the blocks.

         __builtin_unreachable () may cause a barrier to be emitted in
         the middle of a BB.  We need to split it in the same manner as
         if the barrier were preceded by a control_flow_insn_p insn.

 In case expander replaced normal insn by sequence terminating by
 return and barrier, or possibly other sequence not behaving like
 ordinary jump, we need to take care and move basic block boundary.

     Clean up the bb field for the insns that do not belong to BB.

 We've possibly replaced the conditional jump by conditional jump
 followed by cleanup at fallthru edge, so the outgoing edges may
 be dead.

 purge_dead_edges doesn't handle tablejump's, but if we have split the
 basic block, we might need to kill some edges.

void find_many_sub_basic_blocks ( )

Assume that some pass has inserted labels or control flow instructions within a basic block. Split basic blocks as needed and create edges.

Now re-scan and wire in all edges. This expect simple (conditional) jumps at the end of each new basic blocks.

 Update branch probabilities.  Expect only (un)conditional jumps
 to be created with only the forward edges.

bool inside_basic_block_p ( )

Return true if insn is something that should be contained inside basic block.

Avoid creating of basic block for jumptables.

References gcc_unreachable, JUMP_TABLE_DATA_P, and NEXT_INSN.

static void make_edges	(	basic_block	,
		basic_block	,
		int
	)

static

This file is part of GCC.

GCC is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 3, or (at your option) any later version.

GCC is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with GCC; see the file COPYING3. If not see http://www.gnu.org/licenses/.

static void make_edges ( void )

static

Identify the edges going out of basic blocks between MIN and MAX, inclusive, that have their states set to BLOCK_NEW or BLOCK_TO_SPLIT.

UPDATE_P should be nonzero if we are updating CFG and zero if we are building CFG from scratch.

 Heavy use of computed goto in machine-generated code can lead to
 nearly fully-connected CFGs.  In that case we spend a significant
 amount of time searching the edge lists for duplicates.

 By nature of the way these get numbered, ENTRY_BLOCK_PTR->next_bb block
 is always the entry.

     If we have an edge cache, cache edges going out of BB.

     Examine the last instruction of the block, and discover the
     ways we can leave the block.

     A branch.

         Recognize a non-local goto as a branch outside the
         current function.

         Recognize a tablejump and do the right thing.

             Some targets (eg, ARM) emit a conditional jump that also
             contains the out-of-range target.  Scan for these and
             add an edge if necessary.

         If this is a computed jump, then mark it as reaching
         everything on the forced_labels list.

         Returns create an exit out.

         Recognize asm goto and do the right thing.

         Otherwise, we have a plain conditional or unconditional jump.

     If this is a sibling call insn, then this is in effect a combined call
     and return, and so we need an edge to the exit block.  No need to
     worry about EH edges, since we wouldn't have created the sibling call
     in the first place.

     If this is a CALL_INSN, then mark it as reaching the active EH
     handler for this CALL_INSN.  If we're handling non-call
     exceptions then any insn can reach any of the active handlers.
     Also mark the CALL_INSN as reaching any nonlocal goto handler.

         Add any appropriate EH edges.

                 ??? This could be made smarter: in some cases it's
                 possible to tell that certain calls will not do a
                 nonlocal goto.  For example, if the nested functions
                 that do the nonlocal gotos do not have their addresses
                 taken, then only calls to those functions or to other
                 nested functions that use them could possibly do
                 nonlocal gotos.

     Find out if we can drop through to the next block.

References bitmap_clear(), bitmap_set_bit, edge_def::dest, EXIT_BLOCK_PTR, FOR_EACH_EDGE, basic_block_def::index, and basic_block_def::succs.

static void make_label_edge	(	sbitmap	,
		basic_block	,
		rtx	,
		int
	)

static

static void make_label_edge ( )

static

Create an edge between two basic blocks. FLAGS are auxiliary information about the edge that is accumulated between calls. Create an edge from a basic block to a label.

If the label was never emitted, this insn is junk, but avoid a crash trying to refer to BLOCK_FOR_INSN (label). This can happen as a result of a syntax error and a diagnostic has already been printed.

static void mark_tablejump_edge ( )

static

See comment in make_label_edge.

static void purge_dead_tablejump_edges ( )

static

Some targets (eg, ARM) emit a conditional jump that also contains the out-of-range target. Scan for these and add an edge if necessary.

void rtl_make_eh_edge ( )

Create the edges generated by INSN in REGION.

During initial rtl generation, use the post_landing_pad.
